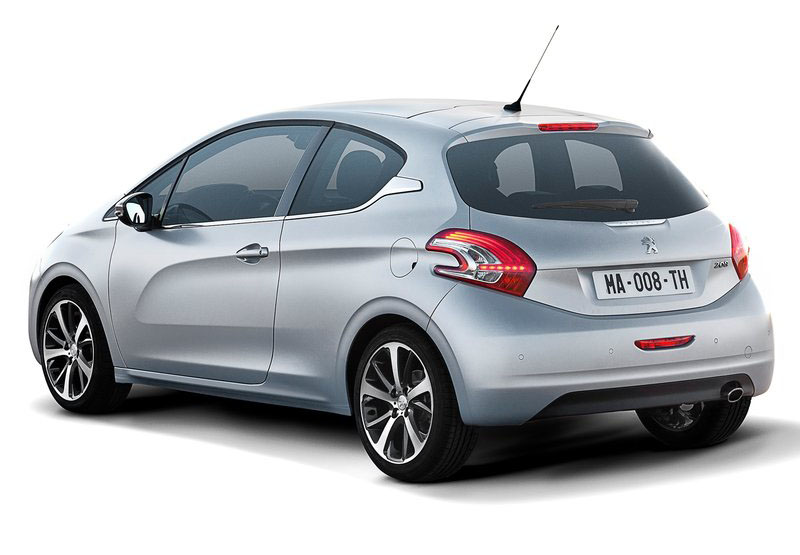

- Peugeot 208, 2013
Right from the start of the project, the technical choices structuring the "A9" project (internal code name of the Peugeot 208) were directed on the basis of the PSA Group's platform 1 to obtain a particularly efficient "architectural performance" in order to obtain a vehicle which is compact, light, spacious and aerodynamic.
Compactness and lightness
The reduced front overhang (- 6 cm compared with the 207) and the shorter rear overhang (- 1 cm) , alongwith the reduced weight of the vehicle, directly benefit improved proportions, agility and everyday practicality (parking, manoeuvres, etc.).
To obtain a maximum reduction in the weight of the vehicle, a true "hunt to eliminate excess weight" took place at the same time to create, overall, a "virtuous spiral", favouring fuel consumption, passive safety and the dynamic performance of the vehicle. Each component designed, each technique used, each part of the vehicle, etc. has been considered with this in mind, by every member of the project team working on the vehicle: aluminium front beam-absorber, size of the front subframe, laser welding of the roof, extensive use of VHSS and UHSS (Very High Strength Steel and Ultra High Strength Steel) panels, soundproofing of the engine at source, etc. Finally, the Peugeot 208 weighs 110 kg less than the 207 with the same 1.4l HDi engine, up to 173 kg less with the entry level petrol engine of comparable power; in short, a feat which allows the Peugeot 208 to start from a weight of 975 kg!
A generous passenger compartment
A wheelbase identical to that of the 207, the adoption of more compact front seat backs and an overall optimisation of the design provide significantly more space in the rear for passengers (+ 5 cm knee room compared with a 207 which already offers good provision) as well as a larger boot: 311 l liquid volume below the rear shelf (285 dm3 VDA standard) and up to 1152 l liquid volume (1076 dm3 VDA standard) when the rear seats are folded.
Note that this latter configuration is obtained very easily as the rear seat backs fold simply, with a single gesture.
Optimised aerodynamics
The dimensions of the Peugeot 208, in particular the width (-2 cm) and the height (-1 cm compared with the 207), its volumes which have been designed with particular attention, the care given to each of its parts (shields under the body, spoiler on certain versions, etc.) permit maximum optimisation of its aerodynamics. So, the best versions have a CdA of 0.61 (Cd of 0.29), which positions it among the best in its segment and which, again, favours fuel consumption and CO2 emissions.
Stylistic re-generation
"Agile, sensuous, athletic, intuitive, concentrated energy, generation jump"... these words were included in the specification of the A9 project and the stylists have succeeded in giving them meaning, coherence and illustrating them from volumes predisposing them to inspiration. From a compact silhouette, reduced overhangs, fluid lines between bonnet and windscreen pillar,... the aesthetic codes of the Marque have been re-invented, both in their main characteristics and in every detail.
A very charismatic front face
The front face, a true genetic signature, unveils a new, particularly charismatic face of the Marque. Its feline expression is more modern, rich and refined, with, in particular (according to version), LEDs and a light guide emphasising the expression of the headlamp unit, both day and night. The same care is given to each part, such as the treatment given to the foglamp surrounds.
As for the grille, this is modelled as a true floating sculpture. In fact, it appears to detach itself from the bodywork and float in the air, with its chrome surround of precisely formed sections. Inside it, a full and technological mesh, or chrome bars, reinforce the modernity and richness of the line. With this original design, it successfully expresses the idea of environmental efficiency: the optimised size of the air intake in fact suggests optimisation of its fuel consumption.
The front shows itself to be both strong and alive, soft and thoroughbred, technological and cheerful, natural and sophisticated.
Overall coherence of the design
The volume of the vehicle appears sculpted by the wind. From the "PEUGEOT" lettering machined in the block at the top of the grille issues a veritable spine which crosses the bonnet, bites into the top of the windscreen, leaves its mark in the centre of the roof and imprints its movement right to the rear and the line of the boot aperture. The rear lamps, true technological adornments, also incorporate a light signature with, notably, three illuminated claws. With their boomerang shape, and this is a technical feat, they appear at one with the body.
Two differentiated body types
The muscular sculpted body sides offer an identity, a posture which is very different in the 3-door and 5-door body types. The doors of this latter appear to be crossed by a "nerve" running from the rear lamps towards the front. On the top-of-the-range versions, the glazing is entirely surrounded with chrome, a feature never seen before in the segment. The profile of the 3-door is much more sculpted, hollowed out, in the image of the SR1 concept car (presented in January 2010 and chronologically designed alongside the 208). Another detail on this, the shape and movement of the quarter panel look at a glance like that of the 205, another iconic Peugeot.
Completely re-thought instruments and controls
Sometimes, things are noticed that seem intangible. A hatchback has 4 wheels, a steering wheel... and through this we read the instrument panel. The history of the motor vehicle, technical developments, habits,... have established this as fact.
Then one day someone has an idea.
What if, to make manoeuvring easier and increase driving sensations, the diameter of the steering wheel were reduced? And what if, to make it easier to read the information on the instrument panel and increase comfort and safety by eliminating the need for the driver to take his eyes off the road, the position of the instrument panel were raised?
Here again, the Peugeot 208 does not undergo development: It breaks the established codes to offer new driving ergonomics, clear, natural, benefiting ease of driving, manoeuvrability, precision,... a more intimate relationship with the vehicle, the feeling of being at one with it.
The numerous people who have tested it, in all situations, are won over by the agility that the vehicle offers, a promise of practicality for everyday manoeuvres. Some drivers see in it a stimulating and interactive environment, others find more sporty attributes, with a more sensitive position, and an ease and precision of involvement passed down in certain situations.
The touch screen: intuitive connectivity
In keeping with its time, consistent with the new ergonomics of its instruments and controls, the Peugeot 208 will offer the majority of its customers, that is from the 2nd level of the range (i.e. approximately 80% of the mix!) a large 7" colour touch screen with carefully designed graphics (resolution 800 x 480) and intuitive operation.
It allows easy access to the various functions: radio, Bluetooth hands-free kit or playing music files via a USB connection or audio streaming.
The screen adopts a semi-floating style as the designers wanted to highlight it in a way which is very enhancing. It is positioned prominently, within easy reach and at eye level, for maximum safety, comfort and harmony with the other components of the dashboard.
Access to reasonably priced navigation
This graphic touch interface is pre-equipped for the navigation option with map of Europe. And this is available at a reasonable price, less than 500 euros, placing it in a very competitive position in the motor vehicle domain of on-board navigation systems.
A pure, contemporary and refined interior ambiance
The instruments and controls, which have been re-thought structurally, have provided a previously unheard of field of expression for the stylists.
The design of the dashboard blends style lines which are both floating and graphic. Concern for perceived quality can be seen everywhere, the obsessive attention to detail, like the vents at the end of the dashboard in the shape of a cat's eye, the numerous "faceted" components echoing certain sections of the exterior style (grille, roof, cut-out of the boot...)... everything has been thought about and re-thought, from the shape of the door trim pads to the gear lever.
The grouping of all the audio controls on the touch screen also permits simplification of the "manmachine" interface with a significant reduction in the number of buttons and controls, favouring a pure and modern design.
Ambiance lighting, decorations... attention to detail
The interior of the instrument panel has been given a very technological treatment, with analogue dials as a reference to precision mechanics, a digital screen on which the speed is always clearly visible and back-lighting effects giving the whole purity and elegance.
Furthermore, the light ambiance has been paid particular attention by the stylists with predominantly white lighting, very top-of-the-range, particularly for the displays, or LEDs with a bluish light outlining the glass panoramic roof at night, if fitted on the vehicle, with a "comet" effect (varying shades of blue).
The decorations are also very elaborate and available according to ambiance and range level. Lacquered black on the front panel, decorations of varying shades of black/blue or dark chrome on the door crossbars,... a range with numerous personalities which are always in a contemporary and refined ambiance.
An interior offering day-to-day practicality
This interior offers no less day-to-day practicality as a result, with numerous well-thought-out storage compartments, such as the deep compartment situated in front of the gear lever which can be used for cans or as an area for a Smartphone, or the generous door pockets, etc.
Well-designed acoustics
This ambiance is also particularly well designed in terms of acoustics and vibration comfort. Following the example of the work carried out on the 508, by tracking the noise to the source (acoustic "encapsulation" of the power trains), the silence on board has been significantly improved compared with the 207, while at the same time contributing to reducing the weight of the vehicle.
Finally, the atmosphere of the passenger compartment is in harmony with the rest of the vehicle: simple and sophisticated, technological and intuitive, modern and high quality.
A range of high-performance power trains
The weight, the aerodynamics, the very low and ultra low rolling resistance tyres and, of course, the expertise and technological innovation of the Group in the engine domain are factors which allow the 208 range to move to a new level in the CO2 performance of a vehicle of the Marque. The efficiency of the HDi PEF diesel engines and the VTi and THP petrol engines, reinforced by the arrival of a new generation of 3-cylinder petrol engines, in fact contributes to the reduction of 34 g/km in the average emissions of CO2 of the Peugeot 208 range compared with the launch range of the 207, and a difference of up to 46 g for the entry-level petrol engine. So, the 208 is aiming to take up the position of leader in its segment.
Peugeot 208 diesel range:
- 1.4l HDi PEF 50 kW (68 hp), 160 Nm, 5-speed manual gearbox; CO2: 98 g/km
- 1.4l e-HDi PEF 50 kW (68 hp),160 Nm,5-speed piloted gearbox,Stop & Start; CO2: 87 g/km
- 1.6 l e-HDi PEF 68 kW (92 hp), 230 Nm, 5-speed manual gearbox, Stop & Start; CO2: 98 g/km
- 1.6 l e-HDi PEF 68 kW (92 hp), 230 Nm, 6-speed piloted gearbox, Stop & Start; CO2: 98 g/km
- 1.6l e-HDi PEF 84 kW (115 hp), 270/285 Nm, 6-speed manual gearbox, Stop & Start; CO2: 99 g/km
Peugeot 208 petrol range:
1.0 l VTi 50 kW (68 hp); 95 Nm, 5-speed manual gearbox; 99 g/km
1.2 l VTi 60 kW (82 hp); 118 Nm, 5-speed manual gearbox; 104 g/km
1.4 l VTi 70 kW (95 hp); 136 Nm, 5-speed manual gearbox: 129 g/km
1.6 l VTi 88 kW (120 hp); 160 Nm, 5-speed manual gearbox: 134 g/km
1.6 l THP 115 kW (156 hp), 240/260 Nm, 6-speed manual gearbox; CO2: 135 g/km
